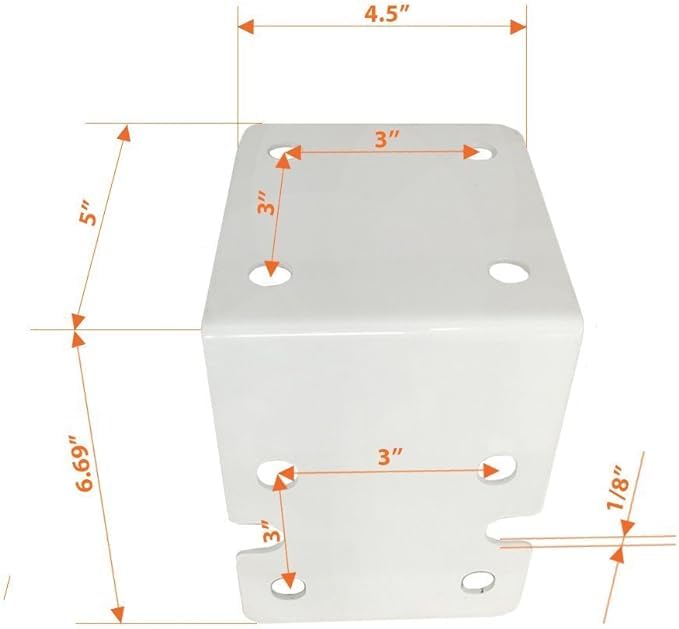

- MEASURE BEFORE YOU ORDER: This bracket has 3 in between mounting hole centres, matching Big Blue housing caps. Filter housing caps are not standardised, so measure hole to hole on your cap before ordering. The cartridge size your housing takes does not determine which bracket fits, the hole spacing does.

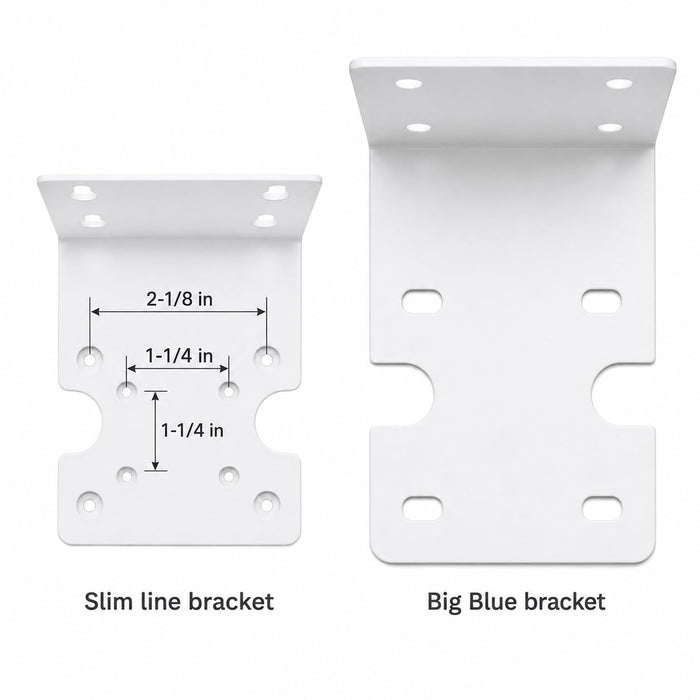

- FITS BIG BLUE HOUSINGS: Compatible with 244047, 150578, MC-1A, 150061, FM-25W, M-25W, AP-MB801, WBA 40635 and BB-HB models. If your cap measures 2-1/8 in or 1-1/4 in between holes instead, you need the slim line bracket, available in this same listing.
- BUILT TO CARRY A FULL HOUSING: Formed steel with a white powder coat finish. Keyhole slots on the upright face for wall mounting and a saddle cutout on the base plate that seats the housing neck. Holds the housing at the correct angle for cartridge changes and keeps the system upright in under-sink, wall and beam installations.
- SPECIFICATIONS: 3 in hole spacing, centre to centre. White powder coated steel. One bracket per package. Package dimensions 6.26 x 5.08 x 4.21 in, weight 1.28 lb. Mounting screws are not included.
- CFS REPLACEMENT PART: Complete Filtration Services has supplied filtration hardware since 2006. Part numbers are listed for reference only. CFS is an independent brand and this is a non-OEM replacement product.
- Compatible Mounting Brackets: Compatible with bracket 244047, 150578, MC-1A, 150061, M-25W, AP-MB801, WBA, 40635, BB-HB, FM-30, FM-25, FM-10, FM-10W, EZ-Flo 22068, 22070, 569986, etc.
CFS heavy duty mounting bracket for Big Blue water filter housings. One bracket per package, white powder coated steel.
The mounting holes are 3 in apart centre to centre. Housing caps are not standardised across manufacturers, so measure between the hole centres on your own cap before ordering rather than going by the cartridge size the housing takes. A housing that takes a 10 in or 20 in cartridge may use either hole pattern.
The upright face carries keyhole slots for wall mounting, and the base plate has a saddle cutout that seats the neck of the housing so the sump hangs square. This keeps the housing at the correct angle for cartridge changes and supports the weight of a full sump in under-sink, wall and beam installations.
Compatible with 244047, 150578, MC-1A, 150061, FM-25W, M-25W, AP-MB801, WBA 40635 and BB-HB housing models. For slim line housings with 2-1/8 in or 1-1/4 in hole spacing, see the slim line bracket in this listing.
Specifications: 3 in hole spacing centre to centre. White powder coated steel. One bracket per package. Package dimensions 6.26 x 5.08 x 4.21 in. Weight 1.28 lb. Mounting screws are not included.
Part numbers are listed for reference only. CFS is an independent brand and this is a non-OEM replacement product.
